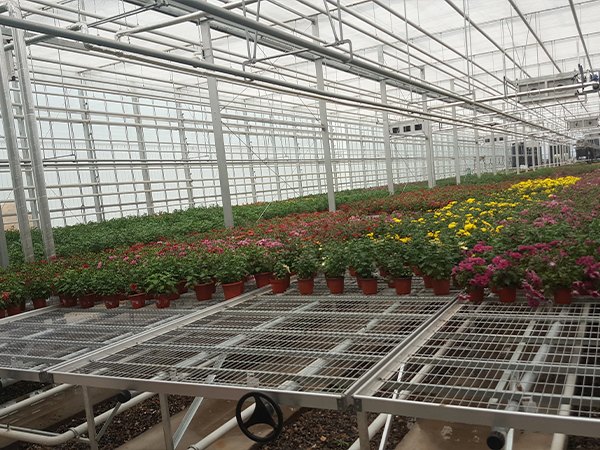

Many potted plants are cultivated on the greenhouse rolling bench.

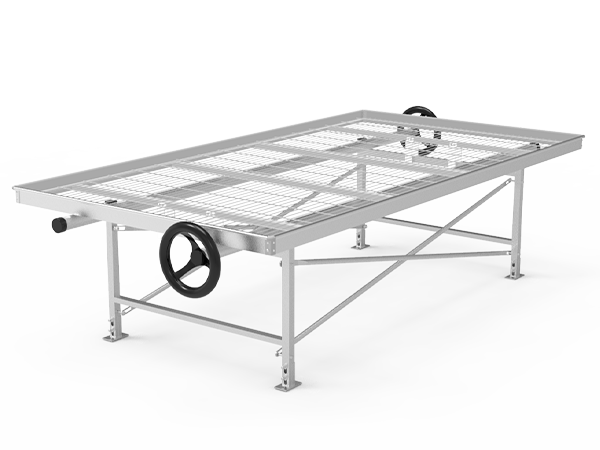

Overall structure of the metal rolling bench

Metal Rolling Benches with Welded Wire Mesh/Expanded Metal Mesh Top

Metal rolling benches are a kind of solid and economic greenhouse bench with welded wire mesh/expanded metal mesh tops.

Its unique structure allows maximum air and light penetration to make seedlings grow better and stronger. Its rolling design allows 25–30 cm adjustable distance each side to create flexible aisle and facilitate the grower looking after seedlings. In this way, it greatly reduces the labor cost and saves the cultivation area to make you gain higher profits.

In addition, the hot-dip galvanized surface treatment make it have excellent corrosion resistance performance and enjoy a service life of up to 20 years.

Features
  • Its mesh opening allows maximum air and light penetration to make seedlings grow better and stronger.
  • Its rolling design allows 25–30 cm adjustable distance each side to create flexible aisle and facilitate the grower looking after seedlings.
  • It greatly reduces the labor cost and increases the cultivation area to make you gain higher profits.
  • Its galvanized surface treatment make it have excellent corrosion resistance performance and enjoy a service life of up to 20 years.
  • Anti-tip brackets are provided to prevent bench top from overturning arising from the weight of plants on it.
  • Rounded corner brackets prevent injury from sharp edges.
Specification

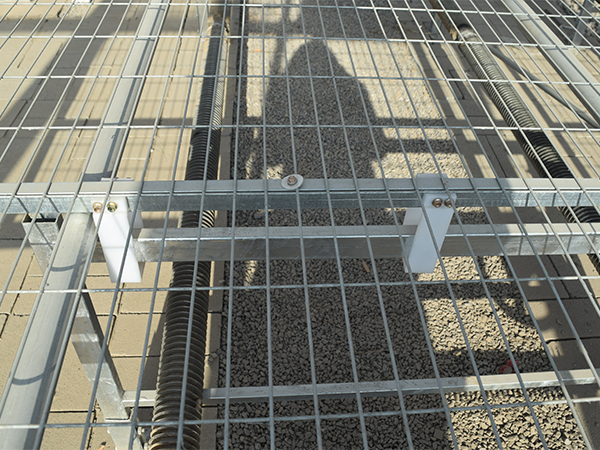

  • Bench top: hot-dip galvanized welded wire mesh.

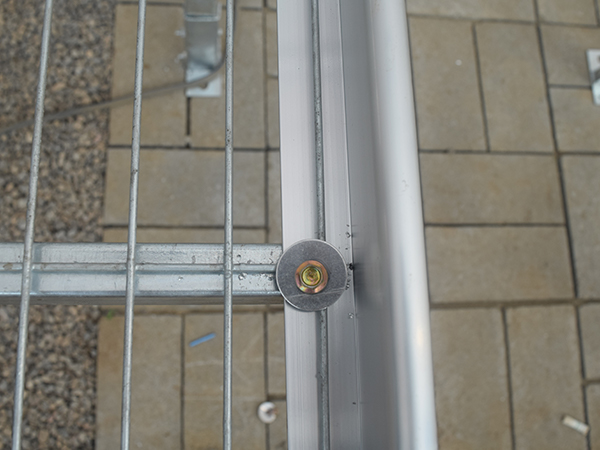

  • Frame: 6063-T5 aluminum profile.
  • Middle cross beam: hot-dip galvanized steel tube.
  • Bench stand: hot-dip galvanized steel tube.

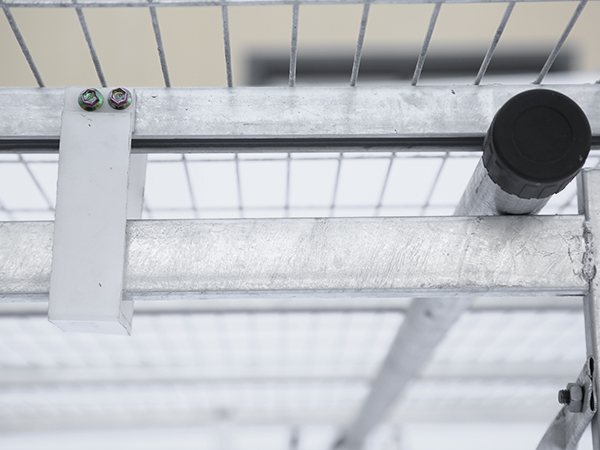

  • Wheel beam: hot-dip galvanized steel tube.

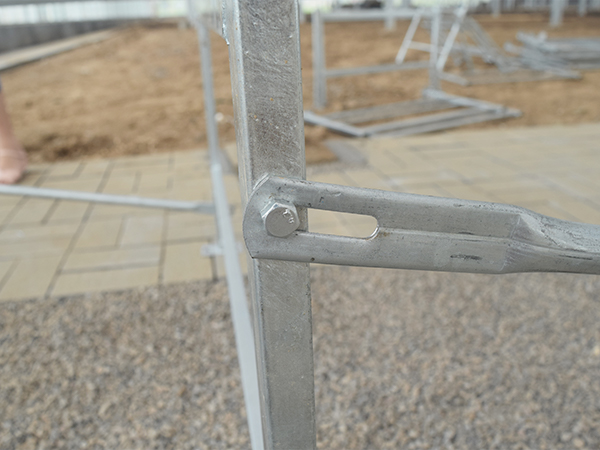

  • Diagonal ligament: hot-dip galvanized steel tube.
  • Bench end braces: hot-dip galvanized steel tube.

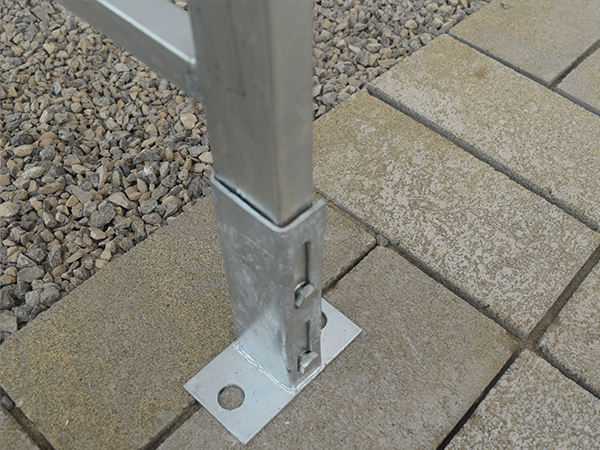

  • Feet: hot-dip galvanized steel tube.
  • Corner bracket: ABS
  • Waterproof cap: plastic

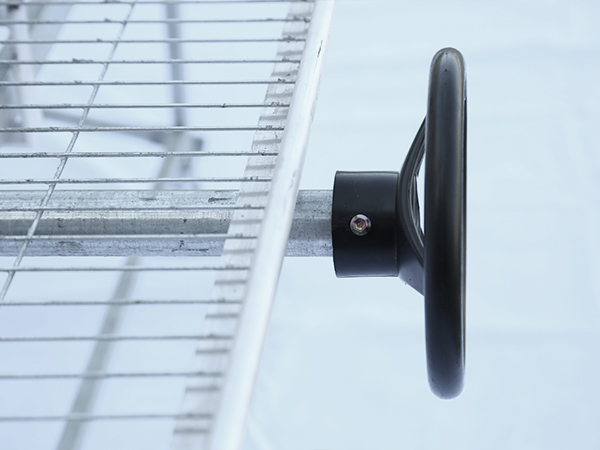

  • Steering wheel: bakelite.
  • Wheel beam cap: plastic
  • Anti-tip bracket: Nylon
  • Clip on bench side profile: aluminum alloy + ABS.
Read More
Table 1: Technical Data of Metal Rolling Bench (Welded Wire Mesh Top)
Bench type Welded wire mesh rolling bench
Mesh opening 120 × 25 mm, 130 × 30 mm, 125 × 50 mm, 50 × 50 mm
Wire diameter 8 gauge (4 mm), 10 gauge (3.5 mm) and 12 gauge (3.2 mm)
Panel width With a maximum width of 2.5 m or customized upon request.
Total length With a maximum length of 30 m or customized upon request.
Height About 70 cm with a adjustable range of 8–10 cm.
Aluminum alloy frame 50 × 105 × 1.5 mm
Feet 30 × 30 × 1.5 mm
Middle cross beam 20 × 30 × 1.5 mm
Diagonal ligament 20 × 1.2 mm
Wheel beam 48 × 2.0 mm
Movable distance 25–30 cm (each side)
Color Sliver
Zinc coating 500 g/m2
Load capacity 450–500 N/m2 (45–50 kg/m2)
Lifespan 20 years
Read More
Table 2: Technical Data of Metal Rolling Bench (Expanded Metal Mesh Top)
Bench type Expanded metal mesh rolling bench
Mesh opening 40 × 60 mm or customized
Wire diameter 8 gauge (4 mm), 10 gauge (3.5 mm) and 12 gauge (3.2 mm)
Panel width With a maximum width of 2.5 m or customized upon request.
Total length With a maximum length of 30 m or customized upon request.
Height About 70 cm with a adjustable range of 8–10 cm.
Aluminum alloy frame 50 × 105 × 1.5 mm
Feet 30 × 30 × 1.5 mm
Middle cross beam 20 × 30 × 1.5 mm
Diagonal ligament 20 × 1.2 mm
Wheel beam 48 × 2.0 mm
Movable distance 25–30 cm (each side)
Color Sliver
Zinc coating 500 g/m2
Load capacity 450–500 N/m2 (45–50 kg/m2)
Lifespan 20 years
Application

Greenhouse rolling benches are ideal for growing seedlings, planting vegetables, flowers, herbs, crops and germinating grow.

They are widely used in

  • Commercial greenhouses.
  • Seedling nursery bases.
  • Hydroponics laboratories.
  • Research glasshouses.
  • Retail and institutional uses.

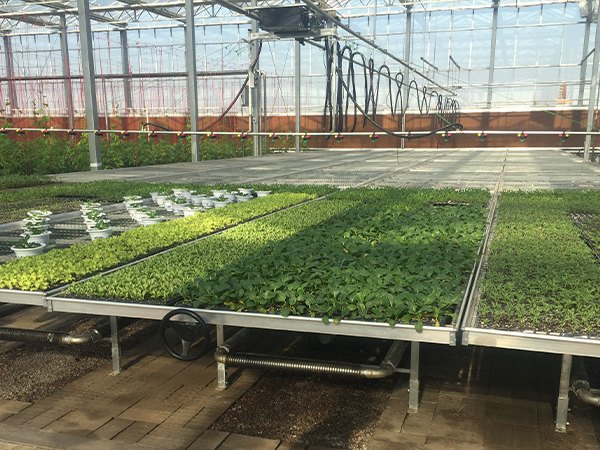

For seedling nursery

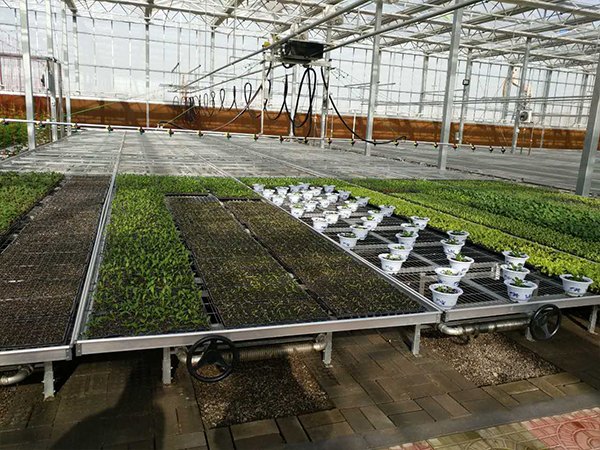

For commercial greenhouses

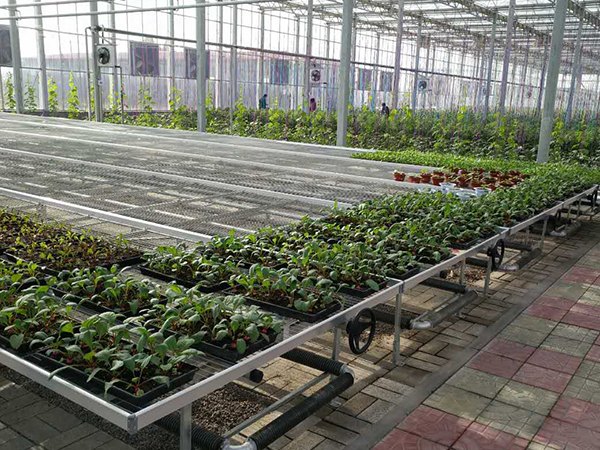

For production base

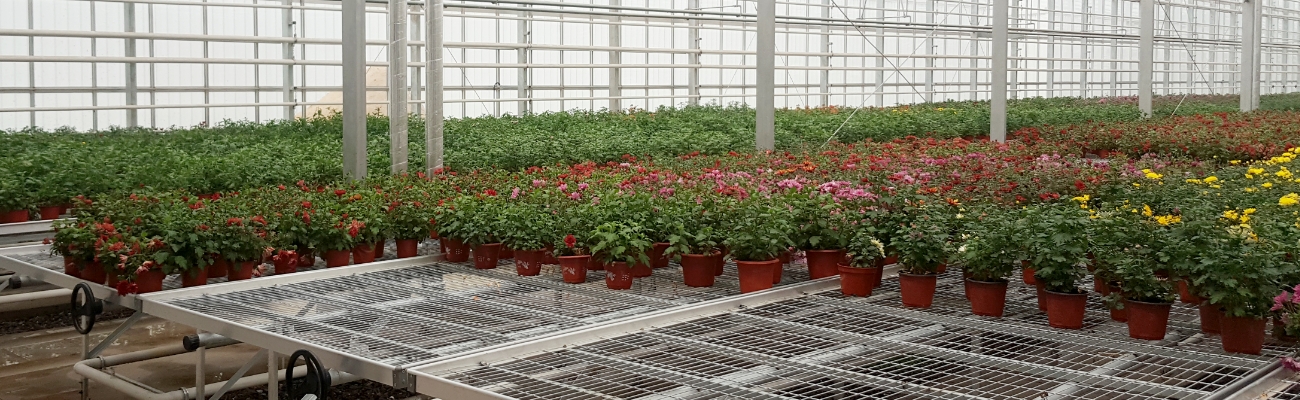

For potted flowers

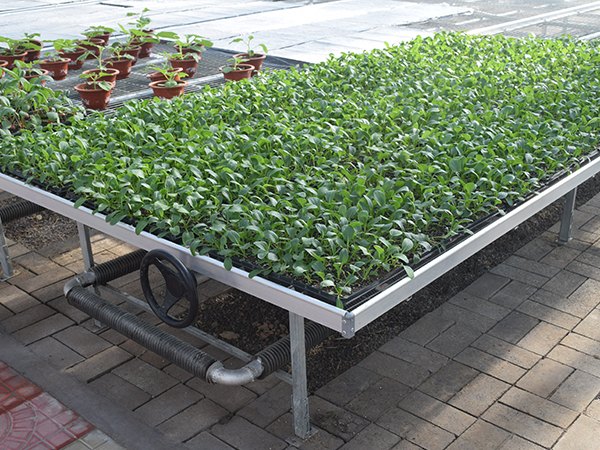

For crop cultivation

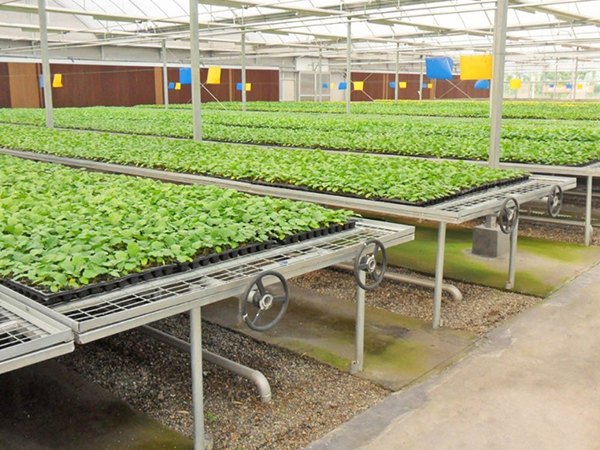

For vegetable cultivation
