Automatic Ebb & Flow Benches for Efficient and Streamline Production

Automatic ebb and flow benches are the most advanced and efficient greenhouse cultivation system in modern times.

It is a specially designed ebb and flow benches equipped with shuttle vehicles and track transport lines. Shuttle vehicles ride underneath the rolling benches and takes the round pipes as rails. The computer control system can move the individual rolling bench to the track transport line via the shuttle bench. The track transport lines are designed to ensure that the rolling bench moves between rows and connects the growing area to the work area. In this way, the automatic plant nursery is realized.

Automatic ebb and flow benches maximize the space utilization while improving the survival and growth rate of seedlings.

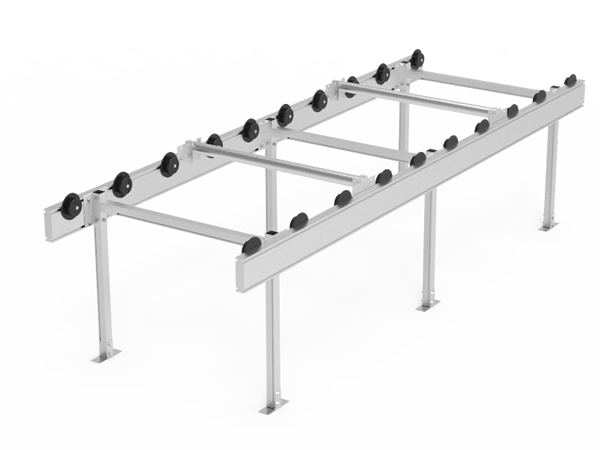

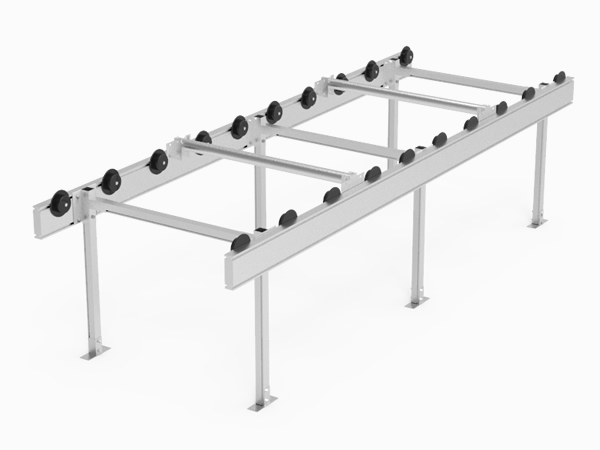

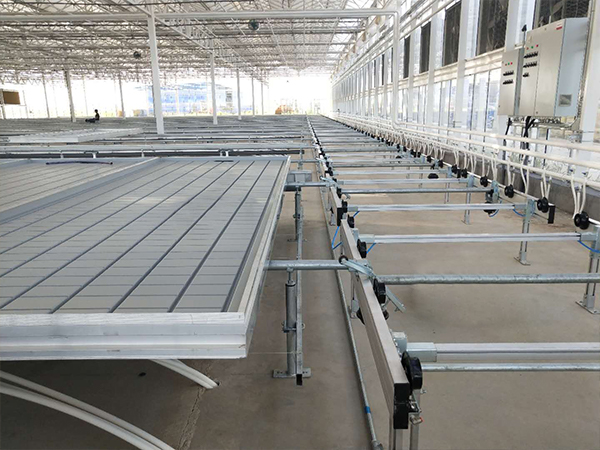

A close up picture of the track transport line

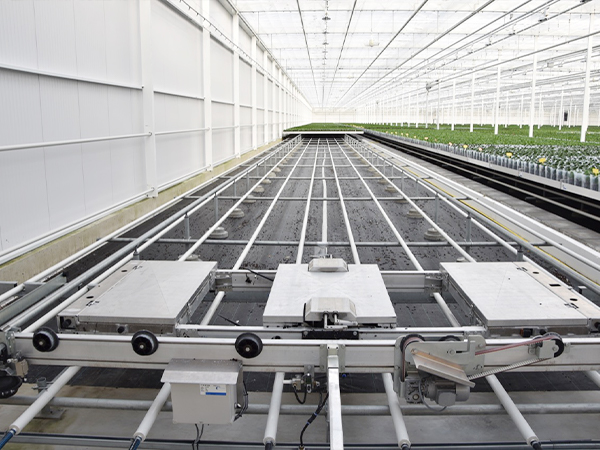

A close up picture of the shuttle vehicles

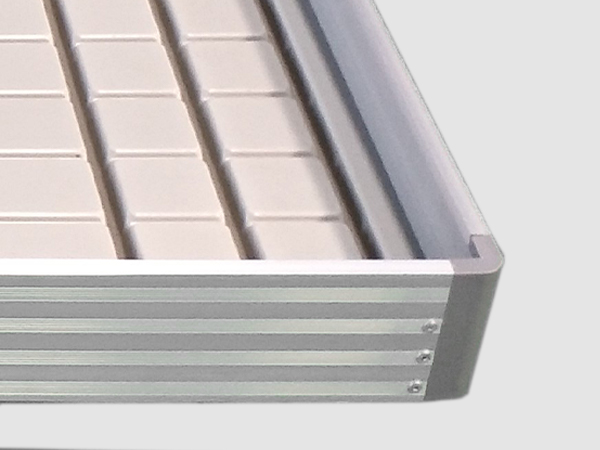

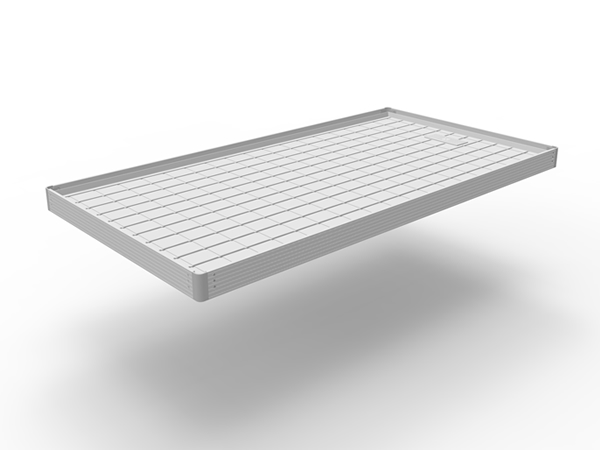

ABS bench tray with aluminum alloy frame

Features

It maximizes the utilization space and is especially suitable for large scale production.
It greatly reduces the concurrence of gangrene and buckling leaves to improve the survival and growth rate of seedlings.
It can easily control relative humidity, lighting and carbon dioxide level in the growing environment.
It greatly reduces the labor costs and provides a high precision and efficient operation to maximize the production efficiency.
It greatly saves water and nutrient solution and makes the fertilization more economic and efficient.
Compatible with many computer control systems and various specifications are available to meet different demands.

Specification

Ebb and flow tray: ABS plastic.
Frame: 6063-T5 aluminum profile.
Corner bracket: ABS
Track transport line: marine grade aluminum profile.
Middle cross beam: hot-dip galvanized steel tube.
Wheel beam: hot-dip galvanized steel tube.
Supporting stand: hot-dip galvanized steel tube.

Table 1: Technical Data of Automatic Ebb & Flow Bench
Bench type	Automatic ebb & flow bench
Single bench size (W × L)	4' × 8', 4' × 10', 5' × 10', 5' × 12', etc.
Bench tray height	1.18", 2.95", 4.92", etc.
Color	Bench and frame are sliver, bench tray is gray. Other colors are available upon request.
UV-resistant	Yes
Zinc coating	500 g/m²
Load capacity	450–500 N/m² (45–50 kg/m²)
Lifespan	20 years
Notes: The actual size of the automatic ebb & flow bench depends on the size of your nursery. Please contact us for professional tips.

Details

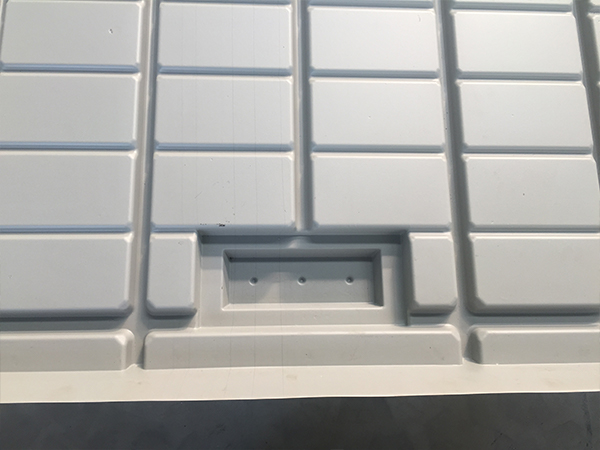

Ebb and flow bench tray with molded drainage channels

Gray filter screen is installed in the grow tray.

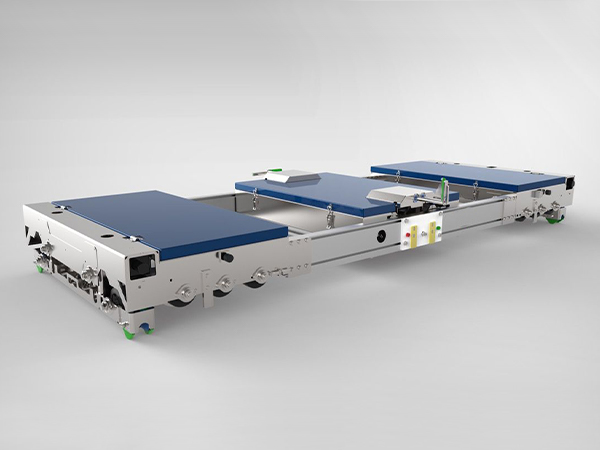

Shuttle vehicle for automatic ebb & flow bench

Application

Automatic ebb & flow benches streamline all the production process and are especially used for large scale production of seedlings, flowers, vegetables, herbs and crops.

They are widely used in

Large scale greenhouses.
Seedling nursery bases.
Commercial glasshouses.
Flower production bases.
Vegetable production bases.
Retail and institutional uses.

Potted Chinese herbs are placed on placed on the automatic ebb & flow bench.

For herb production base

Maize seedlings are planted on the automatic ebb & flow bench.

For seedling nursery greenhouse

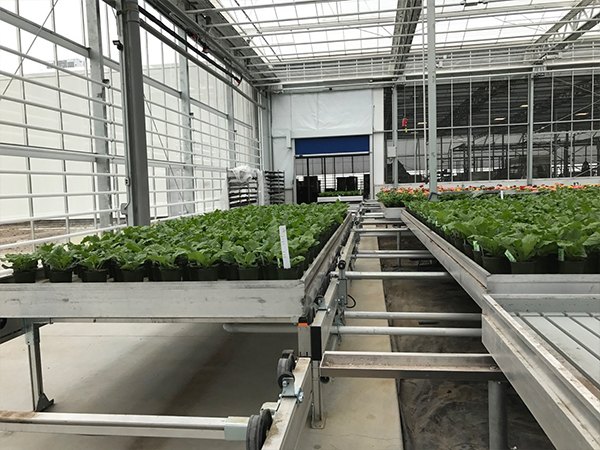

Potted Chinese cabbages are placed on the automatic ebb & flow bench.

For vegetable production base

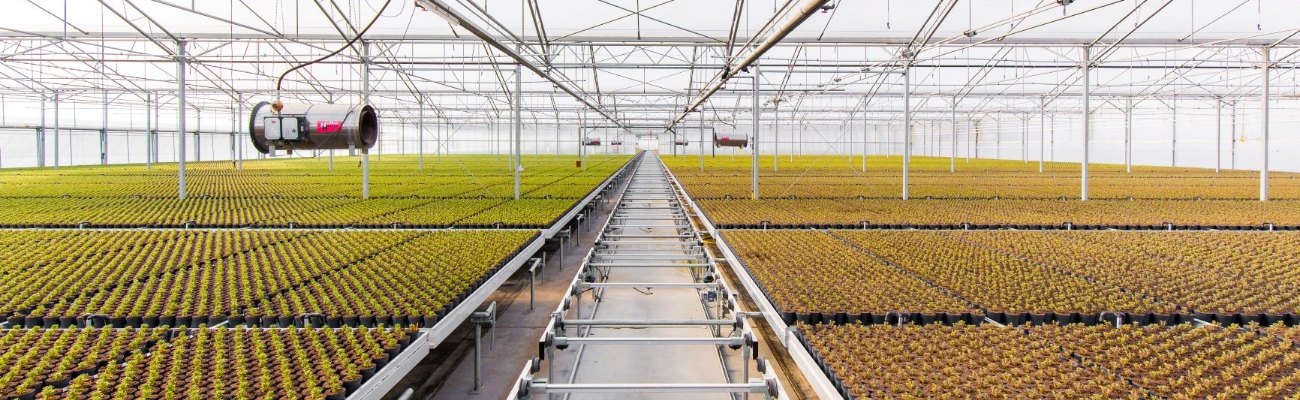

Seedlings on the automatic ebb & flow bench are transported to designed place.

For flower nursery base

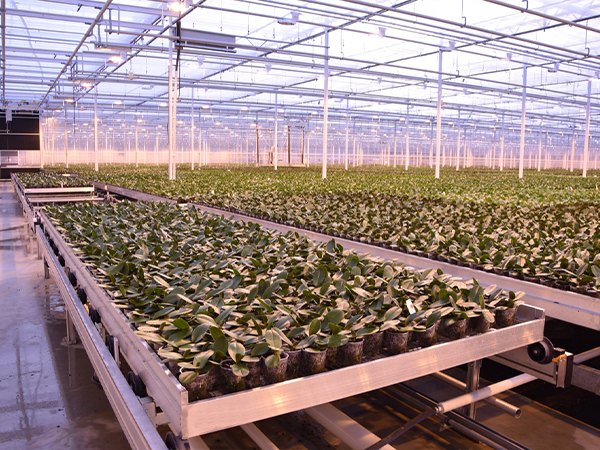

Orchid seedlings are planted on the automatic ebb & flow bench.

For orchid nursery base

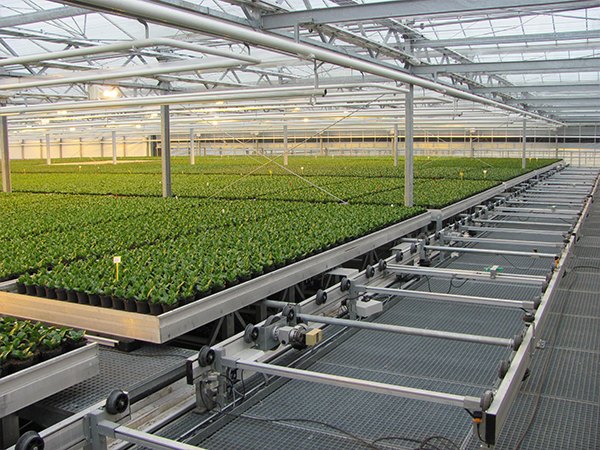

Potted seedlings are placed on the automatic ebb & flow bench.

For commercial greenhouses
