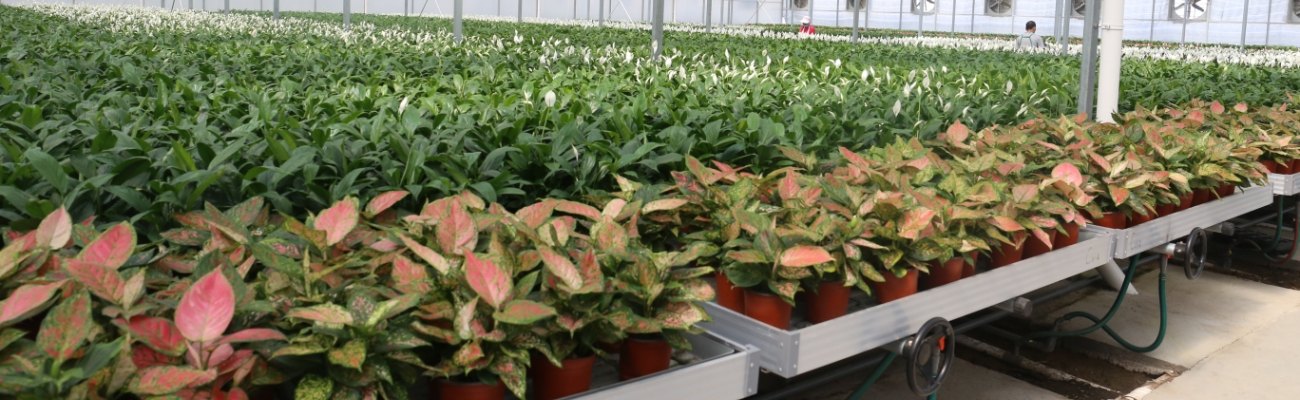

A large number of seedlings are cultivated in the greenhouse.

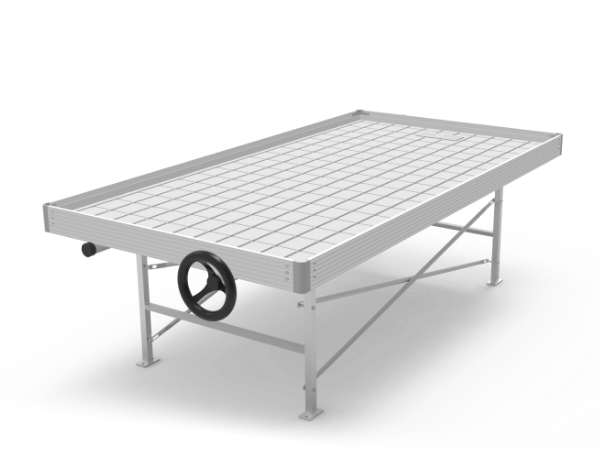

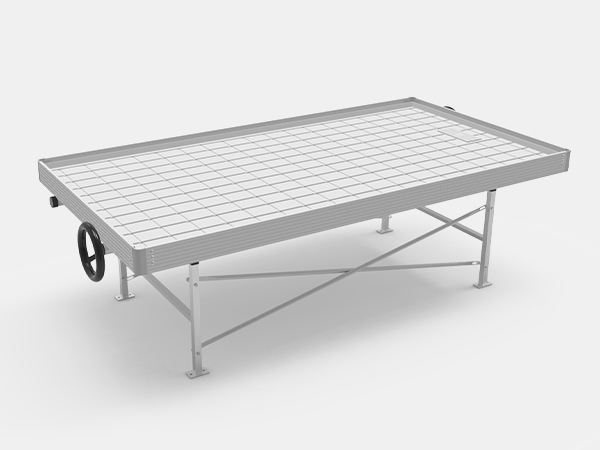

Overall structure of the ebb & flow table

Ebb and Flow Bench – Labor, Water and Fertilizer Saving Nursery

Ebb and flow benches, also known as ebb and flow tables, flood and drain tables, or flood benches, are an increasingly popular greenhouse bench for propagating seedlings and hydroponic growing in modern times.

It is specially equipped with an ebb and flow system made of ABS bench trays that are molded with a network of drainage channels. This unique structure allows nutrient-rich water pumped from the reservoir watering all plants evenly throughout the entire surface of the greenhouse bench and then draining completely when the watering is finished. The water then returns to the reservoir under gravity for recycling.

Ebb and flow benches help you save both labor and nutrient-rich water while ensuring seedlings grow strong and vigorous.

Features
  • The fully recirculating system saves 50%–90% water, 75%–90% fertilizer and 60%–90% labor costs when compared to traditional watering methods.
  • Plants are always watered very evenly while keeping the floor remaining clean and dry.

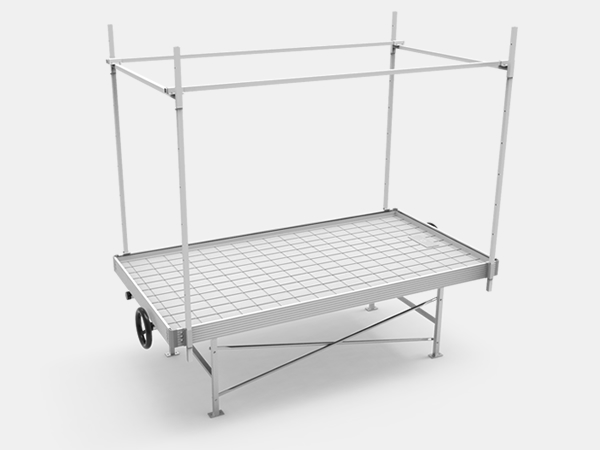

  • Extended frame type is available for installing lighting system.
  • It can easily control relative humidity, lighting and carbon dioxide level in the growing environment.
  • Most plants grown on ebb & flow benches tend to finish 1 to 2 weeks earlier than other irrigation systems.
  • Ebb & flow benches can be stacked in propagation and seeding areas, and growth chambers.
  • Compatible with many computer control systems and various specifications are available to meet different demands.
Specification

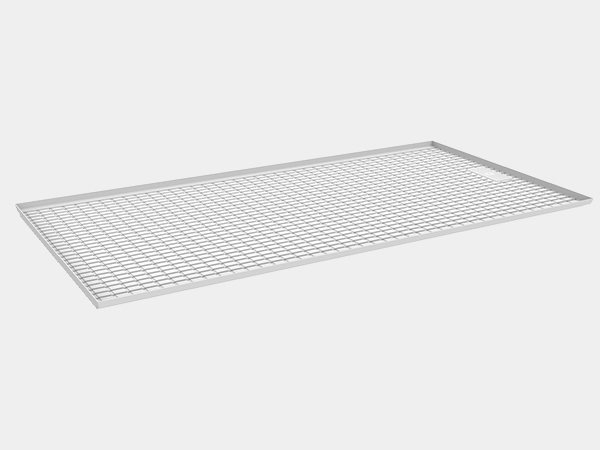

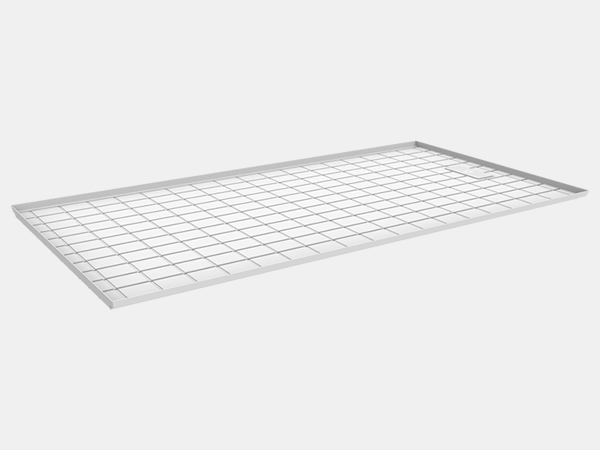

  • Ebb and flow tray: ABS plastic.

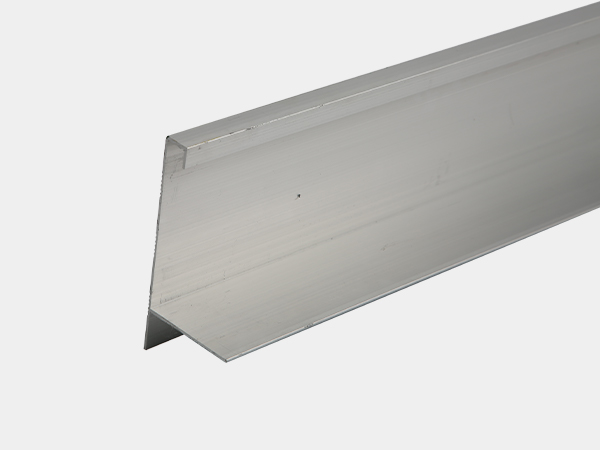

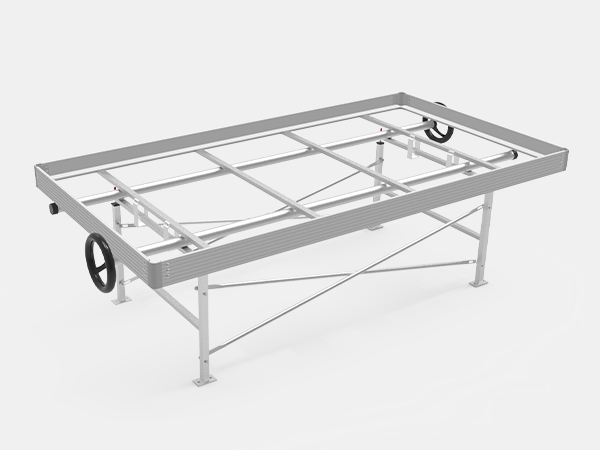

  • Frame: 6063-T5 aluminum profile.

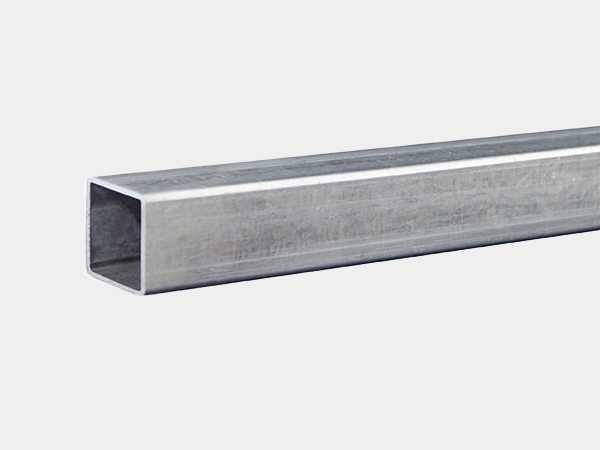

  • Middle cross beam: hot-dip galvanized steel tube.

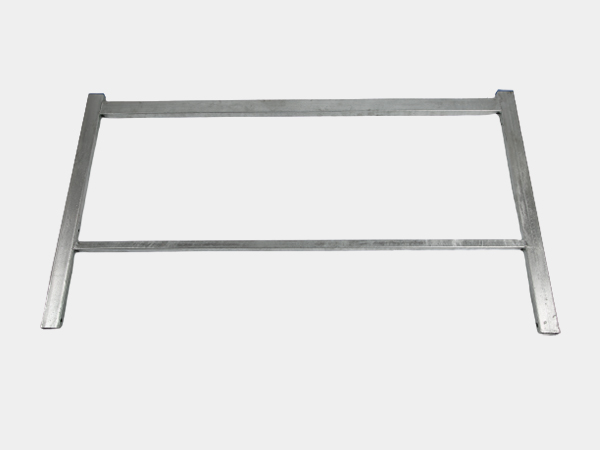

  • Bench stand: hot-dip galvanized steel tube.

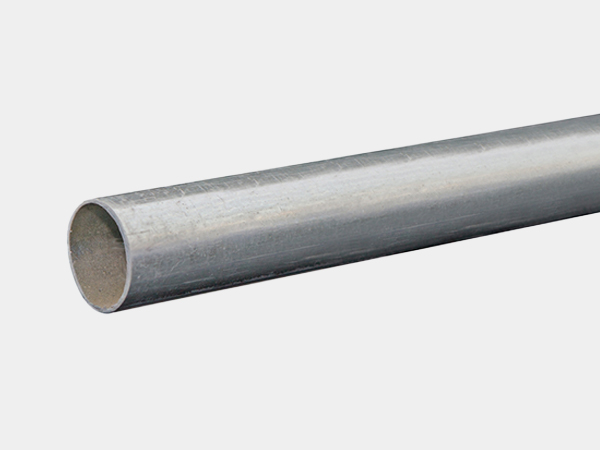

  • Wheel beam: hot-dip galvanized steel tube.

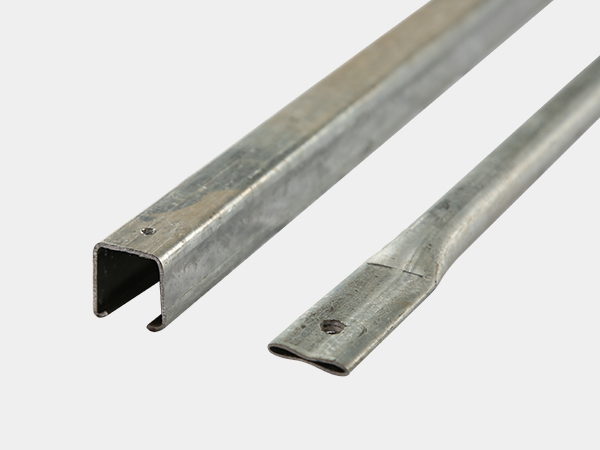

  • Diagonal ligament: hot-dip galvanized steel tube.
  • Feet: hot-dip galvanized steel tube.
  • Bench end braces: hot-dip galvanized steel tube.

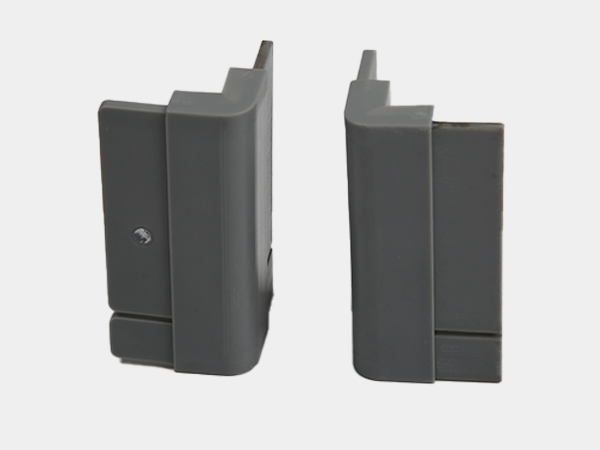

  • Corner bracket: ABS

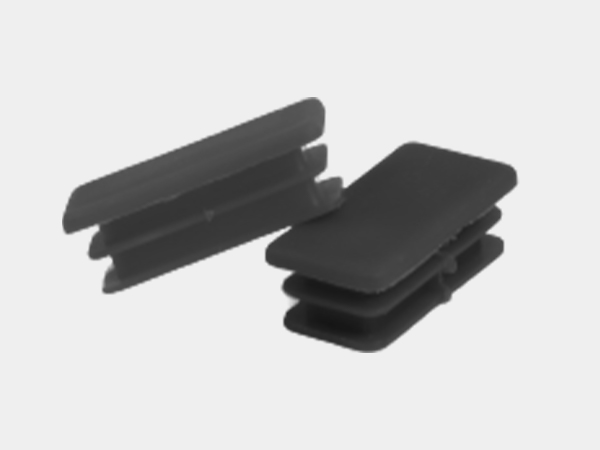

  • Waterproof cap: plastic

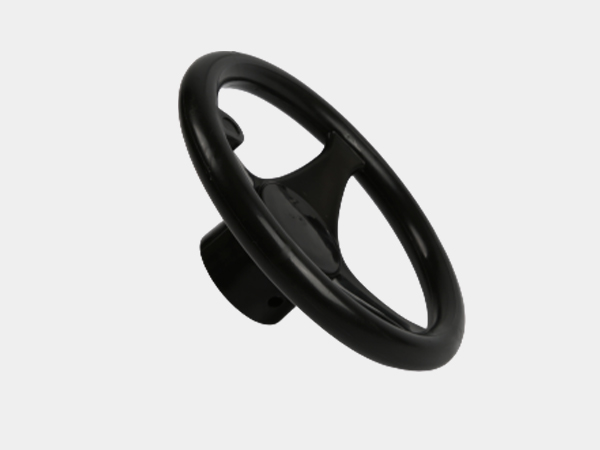

  • Steering wheel: bakelite.

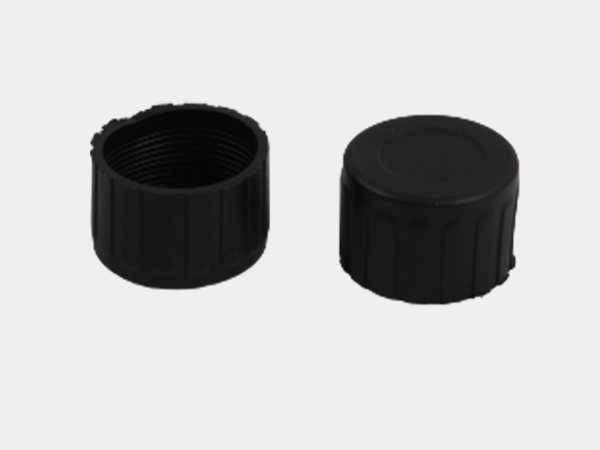

  • Wheel beam cap: plastic

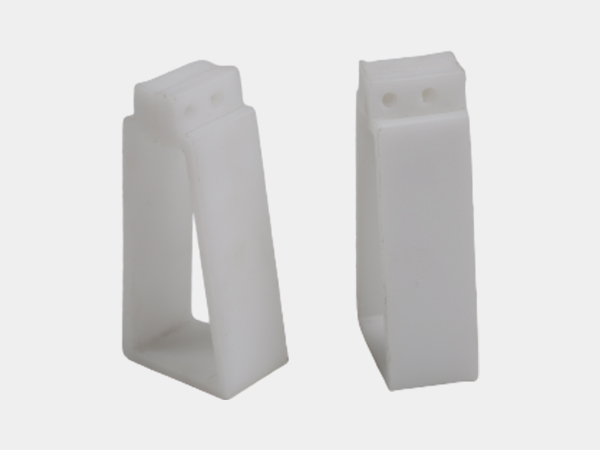

  • Anti-tip bracket: Nylon
  • Clip on bench side profile: aluminum alloy + ABS.
Read More
Table 1: Specification of Ebb and Flow Trays
Model Size Height
(mm) (feet) (mm)
EFT-01 711 × 2150 2.3 × 7.1 50
EFT-02 914 × 2150 3 × 7.1 50
EFT-03 1220 × 2150 4 × 7.1 50
EFT-04 1530 × 2150 5 × 7.1 50
EFT-05 1700 × 2150 5.6 × 7.1 50
EFT-06 1780 × 2150 5.84 × 7.1 50
EFT-07 610 × 1220 2 × 4 50
EFT-08 1220 × 1220 4 × 4 50
EFT-09 1220 × 2440 4 × 8 50
EFT-10 1530 × 3400 5 × 11.2 150
EFT-11 1650 × 3600 5.4 × 11.8 50
EFT-12 1700 × 4450 5.6 × 14.6 50
Read More
Table 2: Technical Data of Ebb & Flow Bench
Bench type Ebb & flow bench
Bench width 2.3', 3', 4', 5', 5.4', 5.6', 5.84'
Bench length Any length can be spliced upon request with a maximum length of 30 m.
Total length About 70 cm with a adjustable range of 8–10 cm and a minimum height of 46 cm.
Aluminum alloy frame 50 × 105 × 1.5 mm
Feet 30 × 30 × 1.5 mm
Middle cross beam 20 × 30 × 1.5 mm
Diagonal ligament 20 × 1.2 mm
Wheel beam 48 × 2.0 mm
Movable distance 25–30 cm (each side)
Color Bench and frame are sliver, bench tray is gray. Other colors are available upon request.
UV-resistant Yes
Zinc coating 500 g/m2
Load capacity 450–500 N/m2 (45–50 kg/m2)
Lifespan 20 years
Structure & Components
Application

Ebb and flow benches are ideal for growing seedlings, planting vegetables, flowers, herbs, crops and germinating grow.

They are widely used in

  • Commercial greenhouses.
  • Seedling nursery bases.
  • Hydroponics laboratories.
  • Research glasshouses.
  • Retail and institutional uses.

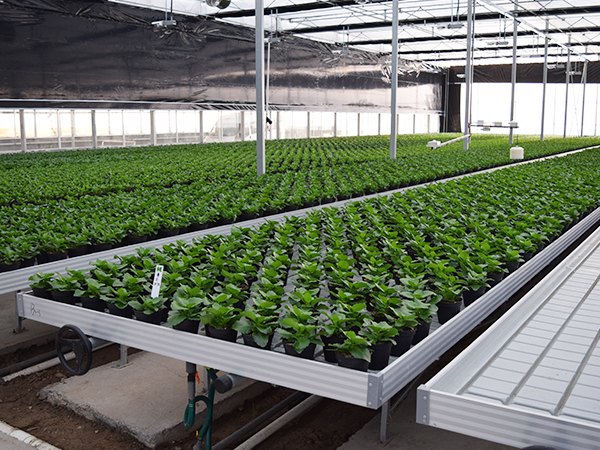

For seedling nursery

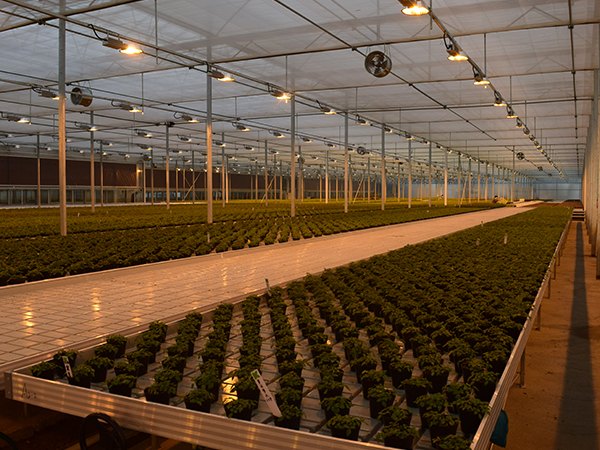

For night nursery

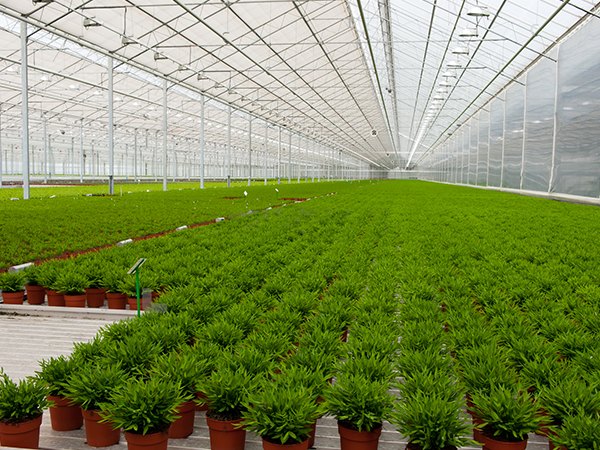

For bamboo plants

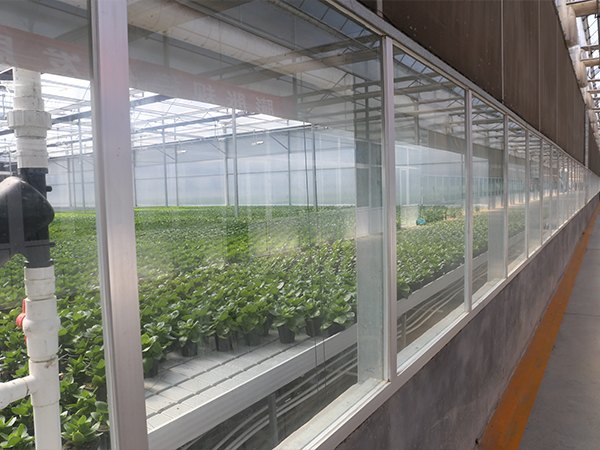

For glass greenhouse

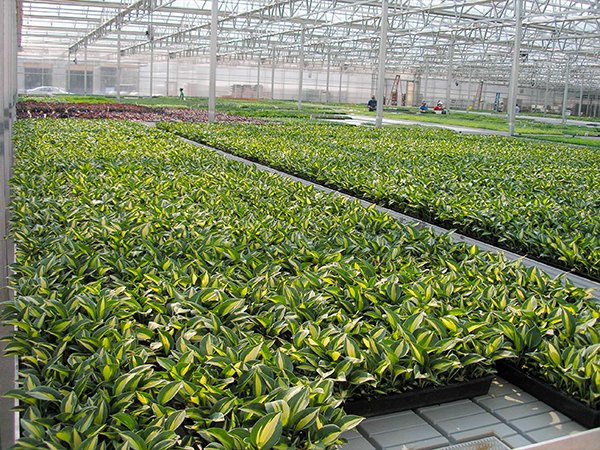

For hydroponic cultivation

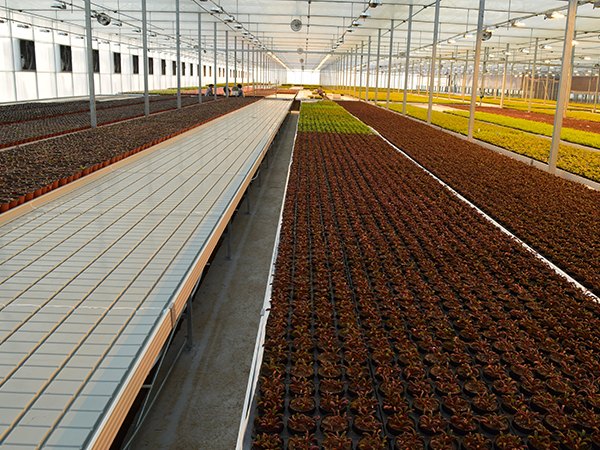

For succulent plants
